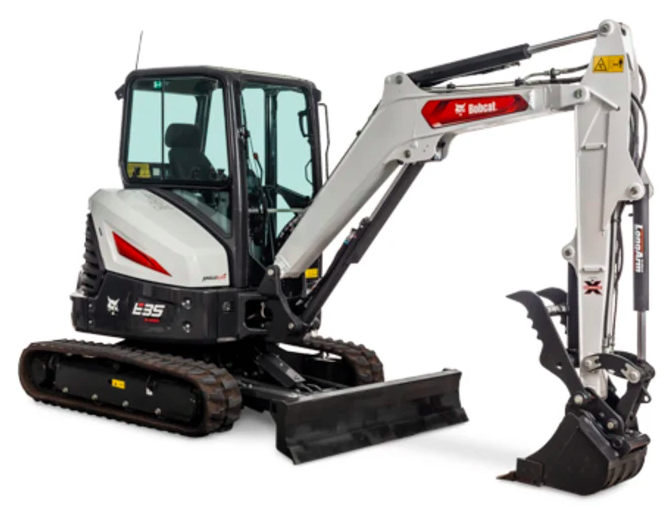

Bobcat E35 Brand New & Used Mini Excavator

Product Description

Bobcat E35 – Product Specification

General Information

• Model: Bobcat E35

• Machine Type: Compact (Mini) Excavator

• Operating Weight: Approx. 3,500 – 3,800 kg (depending on configuration)

• Tail Swing Type: Conventional tail swing

Engine

• Engine Manufacturer: Bobcat

• Engine Model: D1803

• Engine Type: 4-cylinder, liquid-cooled diesel

• Displacement: 1.83 liters

• Rated Power: Approx. 18.2 kW (24.4 hp)

• Emissions Compliance: Stage V / Tier 4 Final

Hydraulic System

• Pump Type: Variable displacement piston pump

• Auxiliary Hydraulic Flow:

  • Standard flow: approx. 64 L/min

  • High-flow (optional): approx. 100 L/min

• Auxiliary Pressure: Approx. 240 bar

• Control System: Joystick-controlled hydraulics with selectable flow

Performance

• Maximum Digging Depth: Approx. 3.1 m

• Maximum Reach at Ground Level: Approx. 5.4 m

• Maximum Dump Height: Approx. 3.4 m

• Bucket Digging Force: Approx. 30.4 kN

• Arm Digging Force: Approx. 18.5 kN

Working Ranges

• Maximum Vertical Dig Depth: Approx. 2.7 m

• Maximum Digging Height: Approx. 4.9 m

• Maximum Swing Radius: Approx. 2.7 m

Swing System

• Swing Speed: Approx. 9.4 rpm

• Boom Swing: Left and right independent boom swing for confined-area operation

Travel System

• Travel Speed:

  • Low: approx. 2.5 km/h

  • High: approx. 4.4 km/h

• Gradeability: 30° (58%)

• Track Type: Rubber tracks (steel tracks optional)

Dimensions

• Overall Length: Approx. 4,860 mm

• Overall Width:

  • Standard: approx. 1,740 mm

• Overall Height: Approx. 2,440 mm

• Ground Clearance: Approx. 320 mm

• Track Length on Ground: Approx. 1,930 mm

Capacities

• Fuel Tank: Approx. 53 liters

• Engine Oil: Approx. 7.0 liters

• Hydraulic Oil System: Approx. 54 liters

• Coolant: Approx. 7.5 liters

Undercarriage

• Number of Rollers per Side:

  • Upper rollers: 1

  • Lower rollers: 4

• Track Width: 300 mm

Cab & Operator Environment

• Enclosed cab with ROPS/TOPS/FOPS certification

• Adjustable suspension seat

• Ergonomic joystick controls

• Automatic engine shutdown and monitoring system

• Heating and ventilation system

• Low-noise, low-vibration operator environment

Electrical System

• System Voltage: 12 V

• Alternator Output: Approx. 40 A

• Battery: Heavy-duty maintenance-free battery

Standard Features

• Auxiliary hydraulic lines to arm

• Blade with float function

• Automatic idle system

• LED working lights

• Keyless start system (select versions)

Optional Equipment

• High-flow auxiliary hydraulics

• Steel tracks

• Long arm configuration

• Hydraulic quick coupler

• Multiple bucket and attachment options
