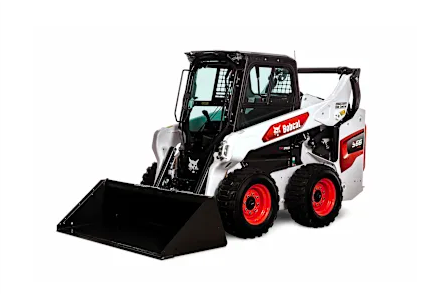

Bobcat S76 Brand New & Used Skid Steer

Product Description

Bobcat S76 – Product Specification

Engine

• Engine Type: Bobcat D34 Tier 4 Final / Stage V diesel

• Engine Manufacturer: Kubota

• Displacement: 1.6 L (1600 cc)

• Rated Power: 49 hp (36.5 kW)

• Peak Torque: 142 Nm (105 lb-ft)

• Fuel Type: Diesel

• Fuel Capacity: 21.1 liters (5.6 gallons)

Drive System

• Transmission: Hydrostatic

• Drive Type: Two-speed drive with traction control

• Travel Speed:

  • Low: 8.7 km/h (5.4 mph)

  • High: 12.4 km/h (7.7 mph)

• Tire Options: 10–16.5, 10–16.5 R4, or foam-filled tires depending on application

• Ground Pressure: 36.6 kPa (5.3 psi) – standard tires

Operating Capacities

• Rated Operating Capacity: 770 kg (1,700 lb)

• Tipping Load: 1,540 kg (3,400 lb)

• Lift Height: 3,200 mm (126 in) to hinge pin

• Dump Height: 2,270 mm (89 in) – standard bucket

• Reach at Maximum Height: 640 mm (25 in)

Hydraulics

• Auxiliary Hydraulic Flow (Standard): 71 L/min (18.7 gpm)

• Auxiliary Hydraulic Flow (High Flow): 112 L/min (29.5 gpm) optional

• System Pressure: 23.1 MPa (3,350 psi)

• Hydraulic Reservoir Capacity: 33.2 L (8.8 gal)

Dimensions

• Operating Weight: 3,655 kg (8,060 lb)

• Overall Length (without attachment): 3,055 mm (120 in)

• Overall Width (standard tires): 1,627 mm (64 in)

• Height to Top of Cab: 1,970 mm (77.5 in)

• Wheelbase: 1,260 mm (49.6 in)

• Ground Clearance: 260 mm (10.2 in)

Cab & Operator Comfort

• Fully enclosed ROPS/FOPS certified cab

• Adjustable suspension seat with seat belt

• Optional heating and air conditioning

• User-friendly joystick controls (optional ISO or H-pattern)

• Digital display for diagnostics, fuel level, and engine information

Attachment Compatibility

• Universal quick-attach system

• Compatible with a wide range of buckets, forks, grapples, augers, and specialty attachments

• Auxiliary hydraulic connections standard

Performance & Features

• Smooth, two-speed hydrostatic drive with traction control

• Optional Bobcat Advanced Control System for enhanced precision

• Compact radius design for maneuvering in tight spaces

• Strong lift arm design for consistent performance under load

• Engine auto-shutdown and low fuel indicators for protection and efficiency
