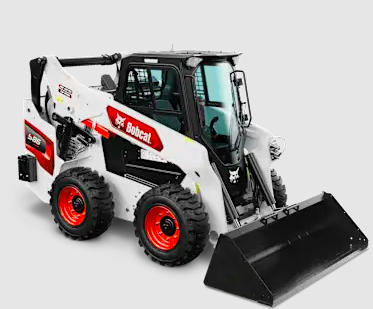

Bobcat S86 Brand New & Used Skid Steer

Product Description

Bobcat S86 – Product Specification

Engine

• Engine Model: Bobcat/Deutz TCD 3.6 L4

• Engine Type: 4-cylinder, turbocharged, liquid-cooled diesel

• Displacement: 3.6 L

• Gross Power: 86 hp (64 kW)

• Rated Speed: 2,500 rpm

• Torque: 270 ft·lb (366 Nm)

• Fuel Capacity: 35.2 gallons (133 L)

• Cooling System: Liquid-cooled with pressurized radiator

Drive System

• Drive Type: Hydrostatic, all-wheel drive

• Transmission: Infinitely variable speed via dual hydrostatic pumps

• Travel Speed:

  • Low range: 0–7.5 mph (0–12 km/h)

  • High range: 0–10 mph (0–16 km/h)

• Differential Lock: Standard

Operating Capacities

• Rated Operating Capacity (35% tipping load): 3,300 lb (1,497 kg)

• Tipping Load: 9,400 lb (4,268 kg)

• Lift Capacity to Max Height: 3,300 lb (1,497 kg)

• Lift Height to Bucket Pin: 11 ft 7 in (3.53 m)

• Reach at Maximum Height: 3 ft 2 in (0.97 m)

Hydraulic System

• Auxiliary Hydraulic Flow (Standard): 23.5 gpm (89 L/min)

• Auxiliary Hydraulic Flow (High Flow Option): 33.2 gpm (125 L/min)

• Hydraulic Pressure: 3,500 psi (241 bar)

• Hydraulic Pump Type: Variable displacement, axial piston

• Hydraulic Reservoir Capacity: 11.2 gallons (42.5 L)

Dimensions

• Overall Length (with bucket): 14 ft 0 in (4.27 m)

• Overall Width (over tires): 6 ft 3 in (1.91 m)

• Overall Height (to cab top): 6 ft 6 in (1.98 m)

• Wheelbase: 4 ft 1 in (1.24 m)

• Ground Clearance: 12.5 in (318 mm)

Chassis & Tires

• Standard Tires: 12-16.5, heavy-duty pneumatic

• Optional Tires: Turf, solid, or industrial configurations

• Frame: Fully welded steel frame with reinforced loader arms

• Attachment System: Bob-Tach® for quick-change attachments

Operator Comfort & Safety

• Cab: Enclosed ROPS/FOPS certified cab

• Seat: Adjustable suspension seat with seat belt

• Controls: Electro-hydraulic joystick controls with optional ISO or H-pattern

• Visibility: Wide front window and high seating position

• Climate Control: Optional air conditioning and heater

Performance & Features

• Turning Radius: Zero-turn skid-steer design for maximum maneuverability

• Attachment Compatibility: Full range of Bobcat attachments, including buckets, forks, augers, grapples, and snow implements

• Stability: Low center of gravity and wide track for enhanced stability

• Maintenance: Easy access to engine, hydraulics, and service points
