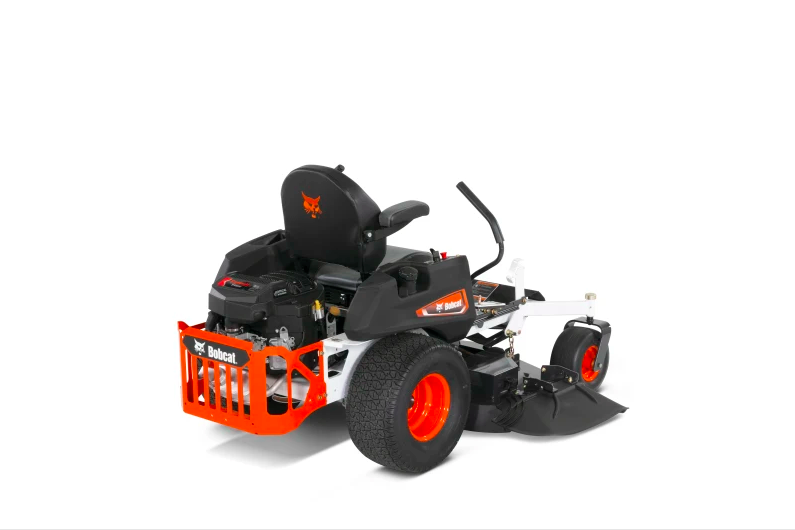

Bobcat ZT3000 Brand New & Used lawn Mower

Product Description

Bobcat ZT3000 – Product Specification

Engine

• Engine Options:

  • Kawasaki FR691V / FR730V

  • Kohler Command PRO (depending on configuration)

• Engine Type: V-Twin, air-cooled, 4-cycle gasoline

• Displacement: Up to approx. 726–747 cc

• Horsepower Range: Approx. 23–26 hp

• Fuel Capacity: Approx. 5.0 gallons (18.9 liters)

Drive System

• Transmission: Hydro-Gear ZT-2800 hydrostatic transaxles

• Drive Type: Dual hydrostatic, zero-turn

• Pump Displacement: 10 cc

• Forward Speed: Up to approx. 8 mph (12.9 km/h)

• Reverse Speed: Up to approx. 4 mph (6.4 km/h)

Mower Deck

Available in 48″, 52″, and 61″ cutting widths:

Deck Construction

• Heavy-duty fabricated TufDeck™ steel deck

• 10-gauge steel deck top

• 7-gauge steel spindle supports and reinforced side skirts

• Welded, reinforced deck structure for durability

Cutting Performance

• Cutting Height Range: Approx. 1.5″ – 5.0″ (38 – 127 mm)

• Blade Tip Speed: Up to approx. 18,800 ft/min

• Blade Engagement: Electric PTO clutch

• Discharge: Side discharge standard

• Mulching / Collection: Optional kits available

Chassis & Frame

• Heavy-duty welded tubular steel frame

• Reinforced front caster arms welded directly to the frame

• Integrated rear engine guard

Tires

• Drive Tires: 22 × 11.0-10

• Front Casters: 13 × 6.5-6

• Commercial-grade turf tread for traction and stability

Dimensions

(Approximate values, vary by deck size)

• Overall Length: Approx. 78–80 in (1980 – 2030 mm)

• Overall Width:

  • 48″ deck: ~50–59 in (with/without chute)

  • 52″ deck: ~54–63 in (with/without chute)

  • 61″ deck: ~63–72 in (with/without chute)

Capacities

• Fuel Tank: 5.0 gal (18.9 L)

• Hydraulic / Transaxle Oil: Approx. 4.5 qt total

Operator Station & Comfort

• Premium high-back seat with armrests

• Seat suspension system with fore-aft adjustment

• Ergonomic dual-levers for precise zero-turn control

• Wide foot platform with vibration isolation

• Cup holder and integrated storage areas

Electrical System

• Battery: 12-V heavy-duty

• Charging System: High-output alternator

Performance & Productivity

• Zero-turn radius for superior maneuverability

• High blade tip speed for clean, consistent cut quality

• Designed for demanding residential and light-commercial mowing applications

Standard Features

• Fabricated steel mower deck

• Hydrostatic drive with commercial-grade components

• Electric PTO clutch

• Adjustable cutting height system

• Heavy-duty steel frame and caster forks
