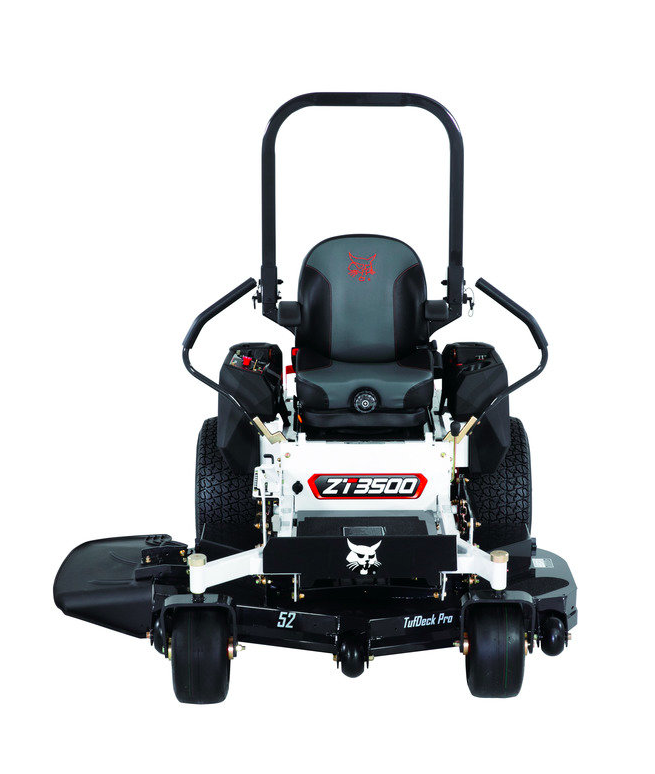

Bobcat ZT3500 Brand New & Used lawn Mower

Product Description

Bobcat ZT3500 – Product Specification

Engine

• Engine Model: Kawasaki FR691V / FR730V (model dependent)

• Engine Type: V-Twin, air-cooled, 4-cycle gasoline

• Displacement: 726 cc – 726+ cc (depending on engine option)

• Horsepower: Approx. 23.0 – 24.0 hp

• Fuel Capacity: 13.3 liters (3.5 gallons)

Drive System

• Transmission: Hydro-Gear ZT-2800® hydrostatic transaxles

• Drive Type: Dual hydrostatic, independent wheel motors

• Forward Speed: Up to approx. 12 km/h (7.5 mph)

• Reverse Speed: Up to approx. 6.4 km/h (4.0 mph)

Mower Deck

Available cutting widths: 48″ and 52″

Deck Construction

• Heavy-duty fabricated steel TufDeck™

• 10-gauge steel top plate

• 7-gauge reinforced spindle supports

• Welded deck structure with reinforced corners

Cutting Performance

• Cutting Height Range: 38 – 127 mm (1.5″ – 5.0″)

• Blade Tip Speed: Up to approx. 18,800 ft/min

• Blade Engagement: Electric PTO clutch

• Discharge: Side discharge standard

• Options: Mulching kit and grass collection system

Chassis & Frame

• Fully welded tubular steel frame

• Reinforced front and rear frame sections

• Integrated engine guard for protection

Tires

• Drive Tires: 20 × 10-10

• Front Casters: 13 × 6.5-6 heavy-duty caster wheels

• Sealed bearings for extended service life

Dimensions

• Overall Length: Approx. 79 in (2007 mm)

• Overall Width:

  • 48″ deck – approx. 60 in (with discharge chute)

  • 52″ deck – approx. 64 in (with discharge chute)

• Wheelbase: Approx. 47 in (1194 mm)

Capacities

• Fuel Tank: 13.3 L

• Hydraulic Oil Capacity: Approx. 4.2 qt (4.0 L)

Operator Comfort & Controls

• Premium high-back seat with armrests

• Spring-suspension seat system

• Adjustable steering control levers

• Rubber-isolated operator platform

• Cup holder and storage compartment

Performance Features

• Zero-turn radius for superior maneuverability

• Smooth hydrostatic drive for precise control

• Designed for residential, estate, and light-commercial mowing

• Reduced vibration through frame and seat isolation

Durability & Maintenance

• Greaseable deck spindles

• Easy-access service points

• Durable powder-coated frame finish

• Heavy-duty deck designed for extended use
