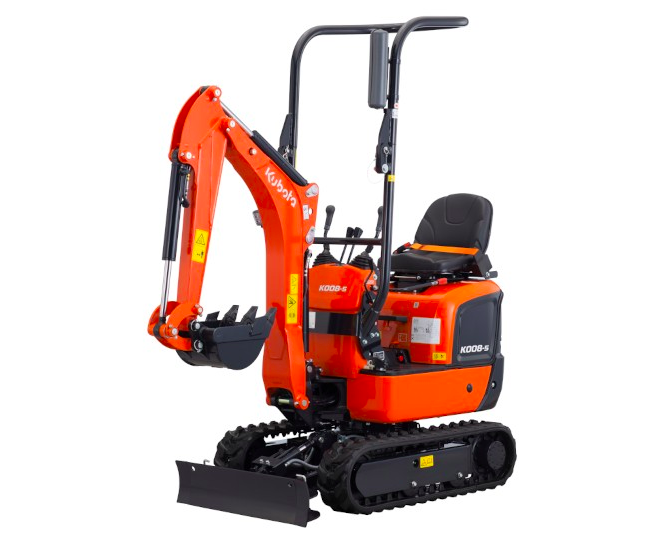

Kubota K008-5 – Brand New & Used

Product Description

Kubota K008-5 — Technical Specification

Engine

• Model: Kubota D722-E4

• Power (gross): ~10.3 HP (7.6 kW)

• Emission Compliance: Stage V

• Combustion System: Kubota Three-Vortex for reduced noise and vibration

Performance & Travel

• Maximum Travel Speed: 2.0 km/h

• Dual-speed drive system for better maneuverability and backfill operations

• Changeable control pattern: Toggle between ISO and SAE patterns without leaving the seat

Hydraulic System

• Pump Capacity: Dual variable pump (2 × ~10.5 L/min)

• Auxiliary Flow (AUX 1): ~21 L/min

• Third-line return for auxiliary hydraulic circuit

• Boom cylinder located on top of the boom for protection

• Hydraulic service ports routed inside the boom to minimize external damage

Digging Performance

• Maximum Digging Depth: ~1,720 mm

• Maximum Reach: ~3,020 mm

• Maximum Digging Force (Arm): ~4.5 kN

• Maximum Digging Force (Bucket): ~9.8 kN

Dimensions & Undercarriage

• Operating / Machine Weight: ~975 kg

• Adjustable Track Width: 700 mm (minimum) to 860 mm (maximum) — single-lever adjustment

• Transport Height: ~2,750 mm

• Min. Ground Clearance: ~150 mm

Blade / Dozer

• Dozer Blade Width: 700 mm to 860 mm (adjustable)

• Blade Height: ~200 mm

• Quick-fold feature: The blade size can be adjusted / folded by removing one pin

Capacities

• Hydraulic Oil Reservoir: ~13.5 L

• Total Hydraulic System Capacity: ~18.0 L

• Fuel Tank Capacity: ~12.0 L

Operator Comfort, Safety & Structure

• Foldable ROPS (roll-over protective structure) as standard

• High-visibility orange seat belt + seat belt alarm

• LED boom work light for enhanced visibility

• Engine start protection system to prevent unauthorized use

• Ergonomic operator area designed for comfort and all-round visibility

• Easy maintenance access: critical service points accessible by lifting the operator seat

Versatility & Features

• Variable width undercarriage allows operation in confined / narrow spaces

• Quick-release bucket pins permit fast tool change without using tools

• Compact dimensions make this machine ideal for confined construction, landscape, and indoor applications

• Designed for safe transport: three-point lifting for crane transport
