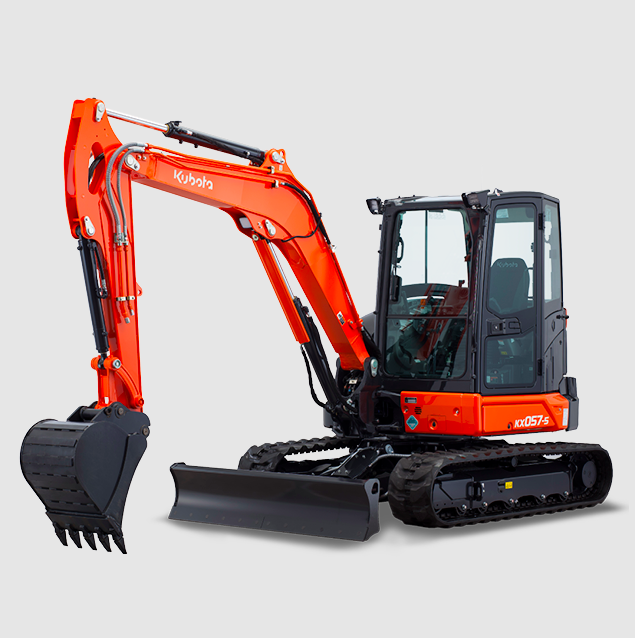

Kubota KX057-5 – Brand New & Used Mini Excavator

Product Description

Kubota KX057-5 — Product Specification

Engine

• Model: V2607-CR-E5 (4-cylinder, Tier 4)

• Displacement: 2,615 cc

• Rated Speed: 2,200 rpm

• Power Output:

  • Gross: 47.6 HP / 35.5 kW

  • Net: approx. 45.4 HP / 33.9 kW

Hydraulic System

• Dual Variable Pump Flow: 56.1 L/min

• Auxiliary Hydraulic Flow:

  • AUX 1: 75 L/min

  • AUX 2: 37 L/min

• Breakout Force:

  • Bucket: approx. 5,070 kgf

  • Arm: approx. 2,560 kgf

Performance

• Travel Speed:

  • Low: 2.8 km/h

  • High: 4.9 km/h

• Swing Speed: 9.3 rpm

• Maximum Traction Force: approx. 6,567 kgf

• Ground Pressure: 0.325 kg/cm²

Dimensions & Weight

• Operating Weight: approx. 5,550 kg

• Operating Weight with Operator: approx. 5,625 kg

• Overall Length: 5,520 mm

• Overall Width: 1,960 mm

• Overall Height: 2,550 mm

• Ground Clearance: 310 mm

Tracks & Blade

• Track Options: Rubber or Steel

• Shoe Width: 400 mm

• Tumbler Distance: 1,990 mm

• Dozer Blade (Standard):

  • Width: 1,960 mm

  • Height: 410 mm

  • Max Lift Above Ground: 440 mm

  • Max Drop Below Ground: 410 mm

Capacities

• Hydraulic Oil:

  • Reservoir: 45 L

  • Total System: 79 L

• Fuel Tank Capacity: 75 L

Cabin & Safety

• ROPS/FOPS Certified (Canopy or Cab Versions)

• 7″ Full-Color LCD Display

• Adjustable AUX Hydraulic Flow

• Optional Rear-View Camera

• Optional LED Work Lights

• Optional Keyless Start

Digging Performance

• Maximum Digging Depth: approx. 3.875 m

• Maximum Digging Reach: approx. 6.125 m

• Boom Swing Angle:

  • Left: 70°

  • Right: 55°

Additional Features

• Electronic 3rd-line hydraulic return for smooth auxiliary operation

• Optional Angle Blade (25° left / 25° right)

• Enhanced HVAC system with improved airflow (cab models)

• High-visibility operator environment with ergonomic controls
