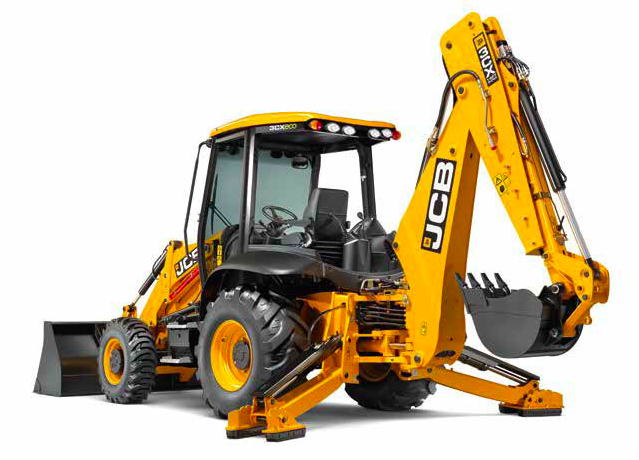

JCB 3CX Brand New & Used Backhoe Tractor

Product Description

JCB 3CX Backhoe Loader – Product Specification

General Overview:
The JCB 3CX is a versatile backhoe loader designed for construction, agriculture, and utility operations. Known for its reliability, fuel efficiency, and ease of operation, the 3CX combines robust digging power with superior loading capabilities.

Engine

• Engine Model: JCB Dieselmax or equivalent

• Engine Type: 4-cylinder, turbocharged, water-cooled

• Gross Power: 74–101 hp (varies by configuration)

• Displacement: Approximately 4.4 L

• Fuel Type: Diesel

• Cooling System: Liquid-cooled

• Fuel Tank Capacity: ~120 L

• Emission Compliance: Meets current Tier/Stage regulations

Transmission & Drivetrain

• Transmission Type: Synchro shuttle or PowerShift options

• Number of Gears: 4 forward / 4 reverse (mechanical), 4/4 with Powershift options

• Drive Type: 4WD with differential lock

• Axle Type: Heavy-duty front and rear axles for high traction

• Hydraulic Clutch System: Ensures smooth operation

Loader Specifications

• Loader Type: Telescopic/standard JCB loader

• Bucket Capacity: 1.0 – 1.2 m³

• Loader Breakout Force: ~60 kN

• Lift Capacity at Maximum Height: ~3,000 kg

• Reach at Maximum Height: ~3.5 m

• Attachment Options: Forks, buckets, grapples

Backhoe Specifications

• Backhoe Dig Depth: ~5.1 m (with standard dipper)

• Maximum Dig Reach: ~6.5 m

• Loader Arm Type: Standard or extendable dipper options

• Backhoe Bucket Size: 0.1 – 1.0 m³

• Breakout Force: ~55 kN

• Swing Arc: 180° for precise digging

• Stabilizers: Hydraulic extendable stabilizers for enhanced stability

Hydraulics

• Hydraulic System Type: Open center with load-sensing options

• Hydraulic Pump Flow: ~90–120 L/min (depending on configuration)

• Hydraulic Pressure: ~200–250 bar

• Auxiliary Hydraulic Function: For attachments

Cab & Operator Comfort

• Cab Type: ROPS/FOPS certified

• Seating: Adjustable air suspension seat

• Controls: Ergonomic joystick and lever layout

• Visibility: Panoramic view with large windows

• Air Conditioning: Optional for operator comfort

• Noise Level: Reduced operator cabin noise (~79 dB)

Dimensions & Weight

• Operating Weight: 7,500 – 8,500 kg (depending on attachments)

• Overall Length: ~5.6 m

• Overall Width: ~2.3 m

• Height (Cab): ~3.3 m

• Wheelbase: ~2.4 m

• Turning Radius: ~5.5 m

Performance & Capabilities

• Travel Speed: Up to 40 km/h

• Gradeability: 40% maximum

• Fuel Efficiency: Optimized engine design for reduced fuel consumption

• Maintenance: Easy-access service points for quick maintenance

Safety Features

• ROPS/FOPS Certified Cab for operator protection

• Stabilizer Locking System to prevent unintended movement

• Emergency Engine Shutoff

• Visibility Enhancements including mirrors and optional cameras
