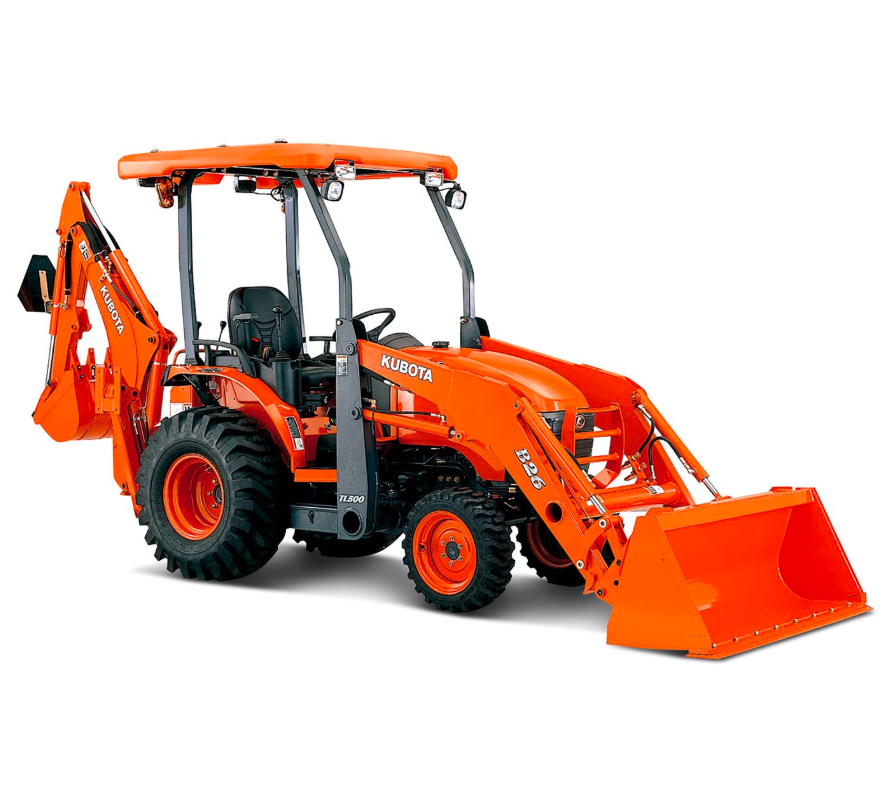

Kubota B26 TLB Brand New & Used Backhoe Tractor

Product Description

Kubota B26 TLB — Technical Specification

Engine & Performance

• Engine type: Liquid-cooled, 3-cylinder diesel

• Displacement: 1,123 cc

• Gross power: ≈ 24.3 HP (≈ 18.1 kW) at 2,800 rpm

• Net power: ≈ 23.1 HP (≈ 17.2 kW) at 2,800 rpm

• Emissions standard: EPA Final Tier 4

Transmission & Drivetrain

• Transmission type: Hydrostatic (HST), 3-range

• Drivetrain: 4-wheel drive (4WD) with rear differential lock (standard)

• Steering: Hydrostatic power steering

• Speed: Infinite range (HST)

• Maximum travel speed: ≈ 17.8 km/h (≈ 11.1 mph)

Hydraulics, PTO & Hitch

• Hydraulic pump flow: ≈ 42 L/min (≈ 11.1 gpm)

• Rear PTO: Independent, 540 rpm — PTO power ≈ 19.5 HP (≈ 14.5 kW)

• 3-Point Hitch (optional): Category I — Lift capacity (24″ behind lift point): ≈ 760 kg (≈ 1,676 lb)

• Hitch control: Position control

Loader / Backhoe / Lifting Capacity

• Front loader lift capacity: ≈ 590 kg (≈ 1,301 lb)

• Backhoe + loader + tractor — Combined operating weight: ≈ 1,815 kg (≈ 4,001 lb)

Dimensions & Mobility

• Wheelbase: 1,581 mm (62.2 in)

• Front tread width: 905 mm (35.6 in)

• Rear tread width: 1,050 mm (41.3 in)

• Minimum turning radius (without brake): ≈ 2.5 m (≈ 8.2 ft)

Tires & Brakes

• Front Tires: 23 × 8.5–14 R4 (Industrial)

• Rear Tires: 12.4–16 R4 (Industrial)

• Brake system: Wet-disc brakes

Fuel & Capacities

• Fuel tank capacity: ≈ 31 L (≈ 8.2 gal)

Operator Station & Safety

• Platform: ROPS / FOPS, 4-post open station

• Frame: Reinforced integrated main frame (matched to loader and backhoe)

• Standard “hard-nose” slanted hood for improved visibility

• Rear-axle differential lock (standard)

• Standard lighting: Work lights for loader/backhoe tasks

Other Features & Design Attributes

• Compact and versatile “tractor-loader-backhoe” configuration — ideal for small-to-medium jobsites

• Easy maneuverability and stable lift & digging performance for a machine of this class

• Independent PTO allows operation of rear-mounted implements without stopping the tractor

• Integrated frame and 4WD system enable reliable operation on rough or uneven terrain
