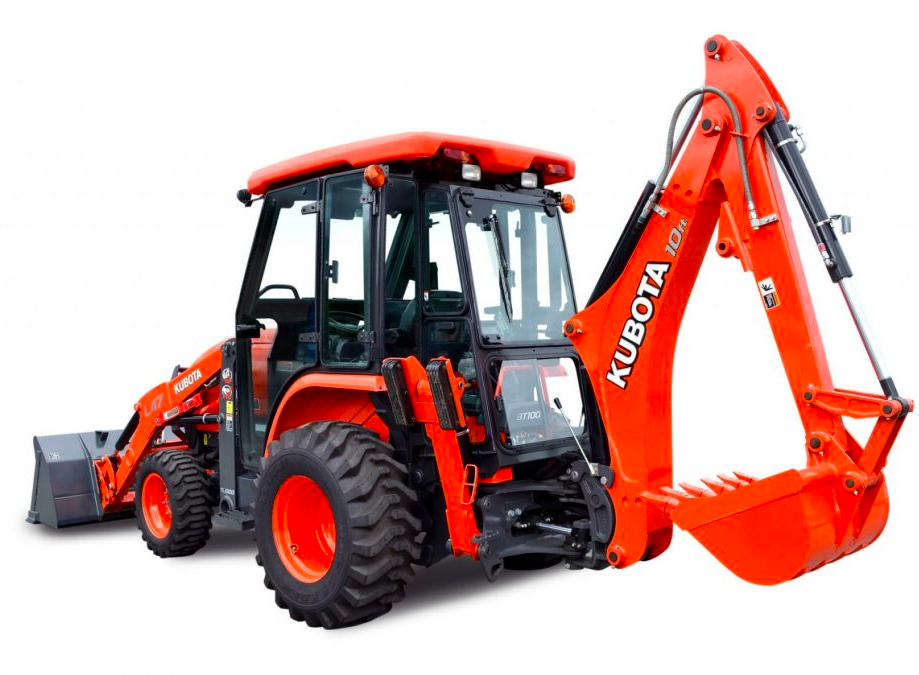

Kubota L47 TLB Brand New & Used Backhoe Tractor

Product Description

Kubota L47 TLB — Product Specification

Engine & Powertrain

• Engine type: 4-cylinder, liquid-cooled diesel

• Displacement: 2,434 cc

• Gross engine power: 47.1 HP (35.1 kW)

• Net engine power: ~44.7 HP (33.3 kW)

• Rated engine speed: 2,700 rpm

• Emissions compliance: EPA Tier 4 Final

Transmission & Driveline

• Transmission: Hydrostatic — HST Plus (6-range)

• Drivetrain: 4-wheel drive (4WD)

• Steering: Hydrostatic power steering

• Brake type: Wet-disc brakes

• Differential lock: Rear axle — standard

Performance & PTO

• PTO type: Independent rear PTO

• PTO rated power: 33.0 HP

• Rear PTO speed: 540 rpm

• Maximum travel speed: ~22.5 km/h (14 mph)

Hydraulics & 3-Point Hitch

• Hydraulic pump flow: 25 gpm (≈ 94.9 L/min)

• 3-Point Hitch: Category I (optional)

• 3-Point Hitch lift capacity (24″ behind lift point): approx. 2,756 lb (≈ 1,250 kg)

Loader (Front-End Loader)

• Loader model: TL1300

• Maximum lift capacity (bucket pivot pin): approx. 2,848 lb (≈ 1,292 kg)

• Maximum lift height (to pivot pin): ~2,893 mm

• Full dump clearance: ~2,287 mm

• Reach at ground level: ~1,739 mm

• Loader bucket roll-back angle (ground): ~48°

• Loader cycle times (approximate): raise ~3.2 s, lower ~2.9 s, curl ~1.9 s, dump ~2.2 s

Backhoe (Rear Excavator)

• Maximum digging depth: ~3,073 mm (121 in)

• Reach from swing pivot: ~4,087 mm (160.9 in)

• Swing arc: 180°

• Bucket rotation: 180°

• Stabilizer spread (operating): ~2,268 mm

• Loading height (fully raised): ~2,359 mm

• Ground clearance with stabilizers retracted: ~312 mm

Dimensions, Weight & Capacities

• Operating weight (with loader, backhoe, standard 4WD configuration): approx. 3,268 kg (7,205 lb)

• Wheelbase: 1,841 mm

• Front tread width: ~1,165 mm

• Rear tread width: ~1,426 mm

• Turning radius (with brake): ~2.8 m

• Fuel tank capacity: ~67 L (≈ 17.7 US gal)

• Standard tires (4WD): Front: 27 x 10.5–15R4 / Rear: 15–19.5R4

Operator Platform & Safety Features

• Operator station: 4-post ROPS / FOPS certified

• Steering wheel: Tilt-adjustable

• Seat: Standard, reversible walk-through deck

• Additional standard features: differential lock, hydrostatic power steering, wet-disc brakes, independent PTO, loader-integrated reinforced frame

Versatility & Overall Capability

The L47 TLB combines the functionality of a tractor, front loader, and backhoe into a single compact, utility-grade machine. Its hydrostatic transmission, strong diesel engine, and 4WD driveline make it suitable for a wide variety of tasks — from loading and material handling to digging and landscaping. The optional 3-point hitch and multiple attachments increase its versatility across construction, landscaping, agriculture, and general utility work.
