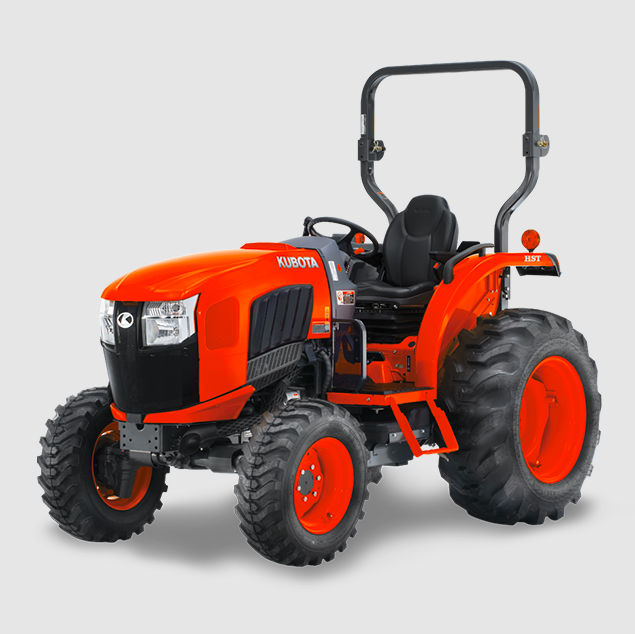

Kubota L6060 Brand New & Used Tractor

Product Description

Kubota L6060 — Product Specification

General

• Type: Compact Utility Tractor

• Model Variants: L6060HST (ROPS), L6060HSTC (Cab)

• Drive: 4WD

Engine

• Model: V2403-CR-TE4 (4-cylinder, turbocharged diesel)

• Displacement: 2.4 L (2,434 cc)

• Rated Speed: ~2,600 rpm

• Power Output:

  • Gross: 62 hp

  • Net: ~60 hp

• Emissions: Tier 4 / EGR (Exhaust Gas Recirculation)

• Fuel System: Direct injection

Transmission

• Type: HST Plus (Hydrostatic) with three ranges

• Gears: Infinite forward and reverse

• Steering: Hydrostatic power steering

• Maximum Travel Speed: ~27.1 km/h (forward), ~24.4 km/h (reverse)

Power Take-Off (PTO)

• Rear PTO: Independent

• Rear PTO Speed: 540 rpm

• Mid PTO (optional): 2,000 rpm

• Claimed PTO Power: ~53 hp

Hydraulic System

• 3-Point Hitch: Category I & II

• Implement Pump Flow: 9.4 gal/min (~35.6 L/min)

• Total Hydraulic Flow: 14.1 gal/min (~53.4 L/min)

• Steering Flow: ~4.7 gal/min (~17.8 L/min)

• Hitch Lift Capacity (at 24” behind lift point): approx. 1,350 kg (~2,976 lb)

• Control: Position control standard, draft control optional

Dimensions & Weight

• Wheelbase: 1,915 mm (~75.4 in)

• Overall Length: 3,210 mm (~126.4 in)

• Overall Width (minimum): ~1,710 mm (~67.3 in)

• Height (ROPS): ~2,490 mm (~98 in)

• Height (Cab): ~2,340 mm (~92.5 in)

• Ground Clearance: ~392 mm (~15.4 in)

• Operating / Curb Weight: ~1,340 kg (2,954 lb) for ROPS version; ~1,980 kg (4,365 lb) for cab version

Tires

• Front Tires (Ag): 9.5–16

• Rear Tires (Ag): 14.9–26

Capacities

• Fuel Tank: ~51 L (~13.5 US gallons)

• Hydraulic Oil: ~45 L

• Transmission Oil: ~45 L

Electrical System

• Battery: 12 V

• Charging System: Alternator

• Charging Current: ~45 A (ROPS) / ~60 A (Cab)

Safety & Operator Platform

• Operator Station: Options include two-post foldable ROPS or enclosed Grand Cab with air-conditioning

• Steering: Power-assisted

• Brakes: Wet disc brakes

Additional Features

• High lift capacity suitable for loader work or heavy attachments

• Durable metal hood and fenders for long-term durability

• Operator comfort enhanced through cabin design (if equipped), with options for ergonomic seat and controls

• Optional front implement hitch for attaching equipment such as blades, sweepers, or snow blowers
