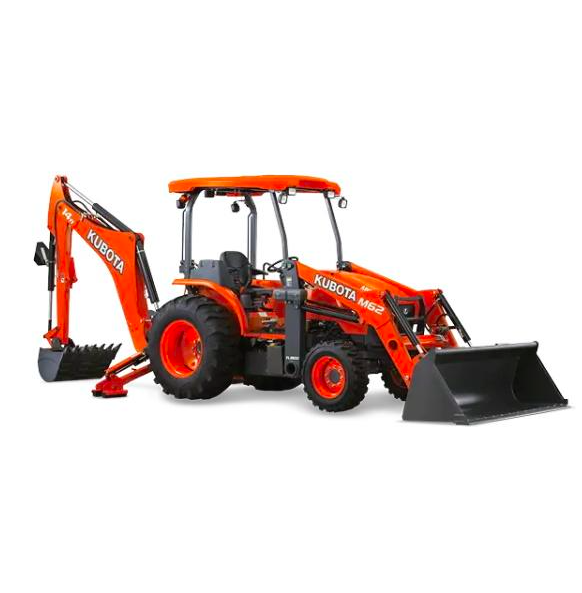

Kubota M62 TLB Brand New & Used Backhoe Tractor

Product Description

Kubota M62 TLB – Product Specification

General Description

The Kubota M62 TLB (Tractor Loader Backhoe) is a versatile, robust, and reliable machine designed for heavy-duty construction, landscaping, and agricultural tasks. With a strong focus on performance, durability, and operator comfort, it delivers exceptional productivity across various applications.

Engine

• Type: Kubota diesel engine, 4-cylinder, water-cooled

• Displacement: 3.3 L

• Rated Power: 62 HP (46 kW)

• Maximum Torque: 220 Nm

• Fuel System: Direct injection

• Fuel Tank Capacity: 70 L

• Emission Standard: Complies with Tier 4 Final / Stage V regulations

Transmission

• Type: Synchro shuttle transmission

• Gears: 12 forward / 12 reverse

• Travel Speed: Up to 30 km/h

• Differential Lock: Rear, hydraulically engaged

Hydraulic System

• Pump Type: Gear pump

• Flow Rate: 55 L/min

• Operating Pressure: 210 bar

• Auxiliary Hydraulic Flow: 28 L/min (for attachments)

• Hydraulic Control Valves: Loader and backhoe separate controls

Loader

• Type: Kubota Loader with quick-attach mechanism

• Lift Capacity (Pivot Pin): 2,400 kg

• Lift Height: 3.2 m

• Bucket Size: 0.25 – 0.35 m³ (standard)

• Dump Angle: 45°

• Breakout Force: 2,200 kg

Backhoe

• Type: Swing-back, extendable boom

• Digging Depth: 4.2 m (standard)

• Reach from Swing Pivot: 4.7 m

• Bucket Capacity: 0.2 – 0.35 m³

• Swing Angle: 180°

• Stabilizers: Heavy-duty hydraulically operated

Dimensions & Weight

• Overall Length: 5,600 mm

• Overall Width: 2,100 mm

• Overall Height: 2,700 mm (ROPS cab)

• Wheelbase: 2,000 mm

• Ground Clearance: 400 mm

• Operating Weight: 4,600 – 4,900 kg (depending on attachments)

Tires

• Standard Tires: Front 12-16.5 / Rear 16.9-28

• Optional Tires: Various industrial and agricultural sizes available

Cab / Operator Comfort

• Cab Type: ROPS / FOPS certified, spacious

• Controls: Ergonomic joystick and lever controls for loader and backhoe

• Air Conditioning: Optional

• Visibility: Excellent all-around visibility for loader and backhoe operation

• Seats: Adjustable, suspension seat with safety belt

Electrical System

• Battery: 12V, 95 Ah

• Alternator: 70 A

• Lighting: Front and rear working lights

Key Features

• Durable and fuel-efficient engine

• High-performance loader and backhoe

• Easy maintenance with accessible service points

• Comfortable operator station with intuitive controls

• Versatile and suitable for construction, landscaping, and farm work
