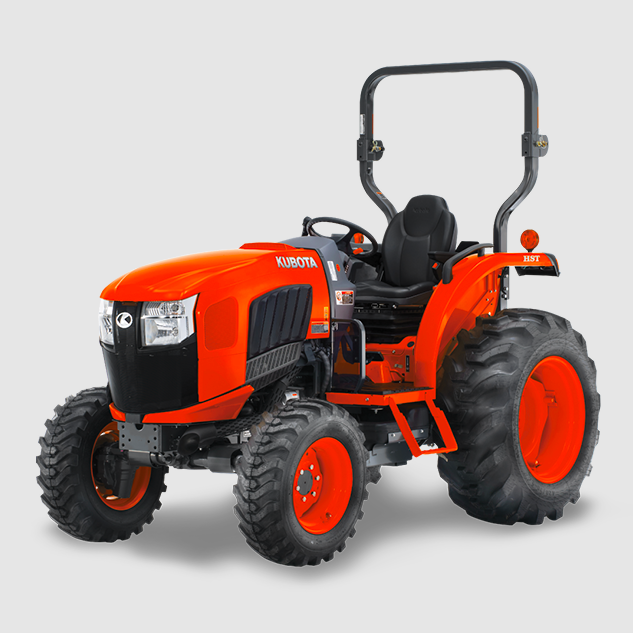

Kubota MU 4501 Brand New & Used Tractor

Product Description

Kubota MU 4501 — Technical Specifications

Engine

• Type: 4-cylinder, liquid-cooled diesel

• Displacement: 2,434 cc

• Rated Speed: ~2,500 rpm

• Power Output: 45 HP

Air Intake & Filtration

• Air Cleaner: Dry type, dual-element

Transmission

• Gearbox: Synchromesh

• Gears: 8 forward / 4 reverse

• Clutch: Dual-plate design

Steering & Braking

• Steering System: Hydraulic double-acting power steering

• Brakes: Oil-immersed disc brakes

• Turning Radius (with brakes): ~2.90 m

Power Take-Off (PTO)

• Type: Independent, dual-speed

• Speeds: 540 rpm and 750 rpm

Hydraulics & Lift Capacity

• Rear 3-Point Hitch: Category I

• Maximum Lift Capacity: ~1,640 kg at hitch point

Fuel System

• Fuel Tank Capacity: ~60 liters

Dimensions & Weight

• Wheelbase: ~1,990 mm

• Overall Length: ~3,110 mm

• Ground Clearance: ~365 mm (4WD) or ~405 mm (2WD)

• Operating Weight: ~1,970 kg (4WD) or ~1,850 kg (2WD)

Axles & Tyres

• Drive Type: Available in 2WD or 4WD

• Front Tyres: Example – 8 × 18

• Rear Tyres: Example – 13.6 × 28 (or optional 14.9 × 28)

Performance & Torque

• Maximum Torque: ~228 Nm (2WD variant)

Additional Features

• Durable “Quad-4” piston design for improved fuel efficiency

• Shuttle-shift capability (quick reverse direction)

• Open-center hydraulic system with response control

• Ergonomic operator deck with wide foot space and suspended pedals

• Rugged construction for long-term, reliable use in agricultural applications
