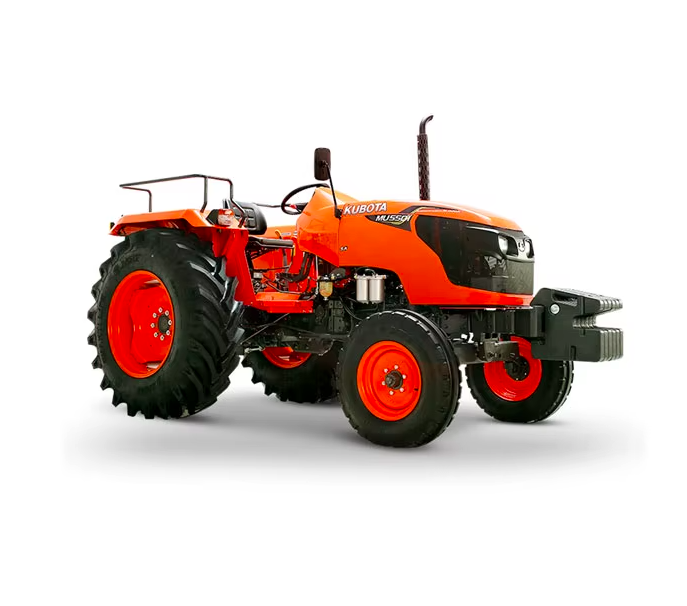

Kubota MU 5501 Brand New & Used Tractor

Product Description

Kubota MU 5501 — Product Specification

Engine

• Type: Kubota V2403-M-DI, inline 4-cylinder, liquid-cooled, with E-CDIS system

• Displacement: 2,434 cm³

• Gross Power: 55 HP

• Net Power: ~52.8 HP

• Air Filter: Dry type, dual element

Transmission & Drivetrain

• Clutch: Double clutch

• Gearbox: 8 forward + 4 reverse, synchromesh

• Travel Speed:

  • Forward: 3 – 31 km/h

  • Reverse: approx. 5 – 13 km/h

• Final Drive: Planetary reduction

Power Take-Off (PTO)

• Type: Independent, dual PTO (standard and reverse)

• Speeds:

  • 540 rpm @ rated engine speed

  • ECO PTO: 750 rpm

  • Reverse PTO: 540R

Hydraulics & Lifting

• Lifting Capacity (at hitch):

  • ~1,800 kg

  • ~2,100 kg (at lift point)

• Control Valve: Power / hydraulic, double-acting

Steering & Brakes

• Steering: Power steering (hydraulic, double-acting)

• Brakes: Oil-immersed disc brakes

Dimensions & Weight

• Operating / Total Weight: ~2,200 kg (varies by version)

• Wheelbase: ~2,100 mm

• Overall Length (without 3-point linkage): ~3,250 mm

• Width: ~1,850 mm

• Ground Clearance: ~415 mm

• Turning Radius (with brakes): ~2.85 to 3.0 m (depending on version)

Tyres

• Front Tyres: 7.5 × 16 (2WD version)

• Rear Tyres: 16.9 × 28

Fuel & Electrical System

• Fuel Tank Capacity: ~65 litres

• Battery: 12 V

• Alternator: 40 A

• Starter Motor: 12 V, ~2.2 kW

Additional Features

• 4-valve E-CDIS engine for better efficiency and combustion

• High torque backup design

• Full-flat deck design

• Optional reverse PTO

• Durable planetary drive system
