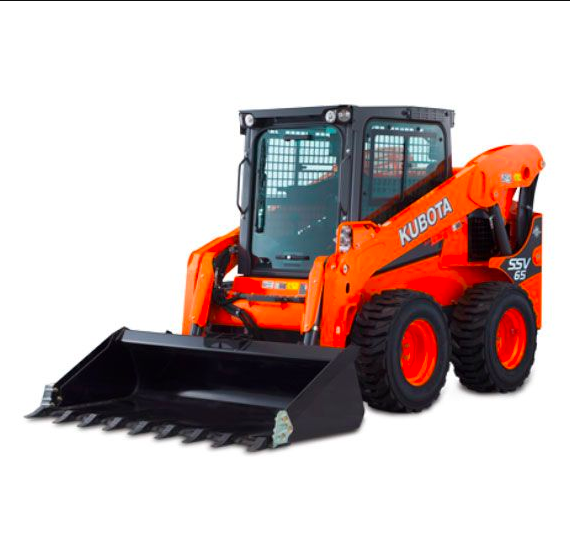

Kubota SSV65 Brand New & Used Skid Steer

Product Description

Kubota SSV65 — Product Specification

Engine

• Engine Model: V2607-CR-TE4

• Emission/Class: Tier 4

• Gross Power: 64.0 hp (≈ 47.7 kW)

• Cylinders: 4

• Displacement: 159.7 cu. in. (≈ 2,615 cc)

• Bore × Stroke: 3.5 in × 4.4 in (≈ 87 mm × 110 mm)

• Aspiration: Turbocharged

Loader / Performance

• Lift Design: Vertical-lift

• Rated Operating Capacity (50% of tipping load): approx. 1,950 lb (≈ 885 kg)

• Tipping (Straight) Load: approx. 3,900 lb (≈ 1,770 kg)

• Bucket Breakout Force: approx. 4,839 lbf (≈ 2,195 kgf)

• Lift-Arm Breakout Force: approx. 3,858 lbf (≈ 1,750 kgf)

Hydraulics & Drive

• Standard Hydraulic Flow: 18.0 GPM (≈ 68.0 L/min)

• Optional High-Flow Hydraulic (Aux): 28.0 GPM (≈ 106.0 L/min)

• Loader Hydraulic Pressure: approx. 3,271 psi (≈ 230 kgf/cm²)

• Traction Force: approx. 7,339 lbf (≈ 3,329 kgf)

• Travel Speed:

  • Low: 6.9 mph (≈ 11.1 km/h)

  • High: 11.1 mph (≈ 17.8 km/h)

Capacities & Tanks

• Fuel Tank Capacity: approx. 25.4 gal (≈ 96 L)

• Hydraulic Reservoir Capacity: approx. 4.2 gal (≈ 16 L)

Dimensions & Weights

• Operating Weight (open-cab configuration): approx. 7,099 lb (≈ 3,220 kg)

• Operating Weight (closed-cab configuration): approx. 7,319 lb (≈ 3,320 kg)

• Overall Height: approx. 79.9 in (≈ 2,029 mm)

• Overall Width (over wheels): approx. 66.5 in (≈ 1,689 mm)

• Overall Width (with standard bucket): approx. 69.0 in (≈ 1,753 mm)

• Overall Length (without bucket): approx. 106.3 in (≈ 2,700 mm)

• Overall Length (with bucket): approx. 135.4 in (≈ 3,439 mm)

• Ground Clearance: approx. 7.6 in (≈ 193 mm)

• Bucket Hinge Pin Height (maximum lift): approx. 121.5 in (≈ 3,085 mm)

• Reach at Maximum Height (dumping): approx. 32.7 in (≈ 831 mm)

Operator Station & Features

• Operator station available in Open-Cab or Enclosed-Cab configuration

• Smooth, responsive vertical lift-arm design, offering good digging and loading performance

• Hydraulic system supports standard and high-flow auxiliary functions for attachments
