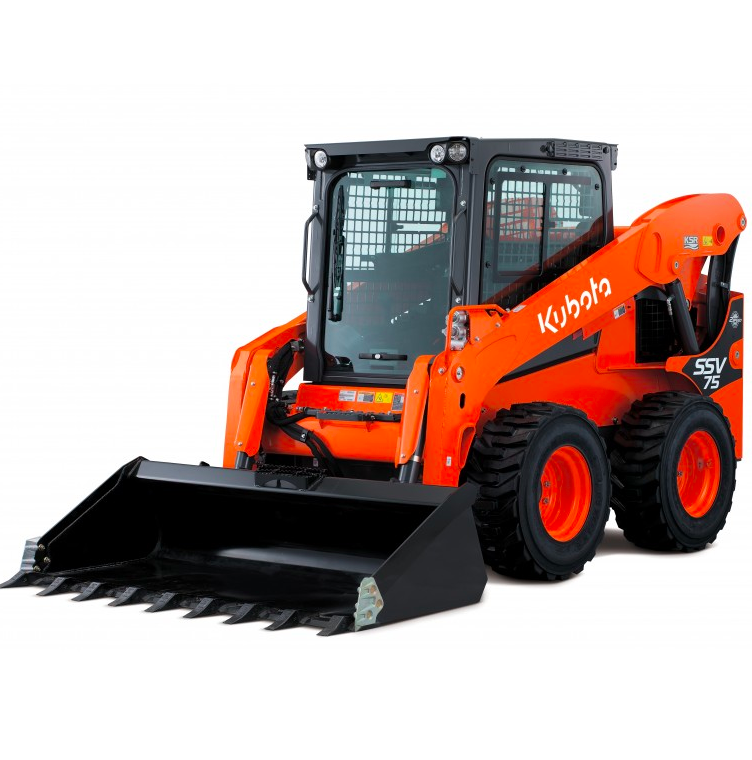

Kubota SSV75 Brand New & Used Skid Steer

Product Description

Kubota SSV75 — Product Specification

Engine & Powertrain

• Engine model: V3307-CR-TE4, 4-cylinder, turbocharged diesel

• Emissions standard: Tier 4

• Gross engine power: 74.3 HP (≈ 55.4 kW)

• Net power: ~71.6 HP (≈ 53.4 kW)

• Displacement: 203.3 cu in (≈ 3331 cc)

Hydraulics & Loader Performance

• Loader breakout force (bucket): ~5,884 lbf (≈ 2,669 kgf)

• Lift-arm breakout force: ~4,850 lbf (≈ 2,200 kgf)

• Auxiliary hydraulic flow (standard): 20.9 GPM (≈ 79.0 L/min)

• High-flow auxiliary option: 30.4 GPM (≈ 115.0 L/min)

• Hydraulic tank capacity: approx. 4.2 gal (≈ 16.0 L)

Operating Capacity & Tipping Load

• Rated operating capacity (50% of tipping load): 2,690 lb (≈ 1,220 kg)

• Tipping load: 5,380 lb (≈ 2,440 kg)

Traction & Mobility

• Maximum travel speed (high range): approx. 11.8 mph (≈ 19.0 km/h)

• Travel speed (low range): approx. 7.4 mph (≈ 11.9 km/h)

• Maximum traction force: ~8,494 lbf (≈ 3,853 kgf)

• Ground clearance: ~8.1 in (≈ 207 mm)

Dimensions & Weight

• Operating weight (open-cab configuration): ~8,245 lb (≈ 3,740 kg)

• Operating weight (closed-cab configuration): ~8,466 lb (≈ 3,840 kg)

• Overall height (cab): ~81.3 in (≈ 2,065 mm)

• Overall width (over wheels): ~71.8 in (≈ 1,823 mm)

• Width with standard bucket: ~75.0 in (≈ 1,905 mm)

• Overall length (without bucket): ~115.0 in (≈ 2,920 mm)

• Overall length (with bucket): ~144.1 in (≈ 3,660 mm)

• Bucket hinge-pin height at max lift: ~128.3 in (≈ 3,258 mm)

• Reach at maximum lift/dump: ~36.9 in (≈ 936 mm)

Cab & Safety Features

• ROPS / FOPS-certified cab (or optional open-cab configuration)

• Suspension seat (standard)

• Hydraulic-function safety lockout and operator-presence system

• Good visibility: wide cab entrance and large windows

Fuel & Fluids Capacity

• Fuel tank capacity: approx. 26.9 gal (≈ 102.0 L)

Attachments Compatibility & Versatility

• Vertical-lift loader arm geometry — strong lift and reach performance

• Compatible with a wide range of attachments: buckets, pallet forks, augers, grapples, and more

• Optional hydraulic high-flow for attachments requiring extra hydraulic power
