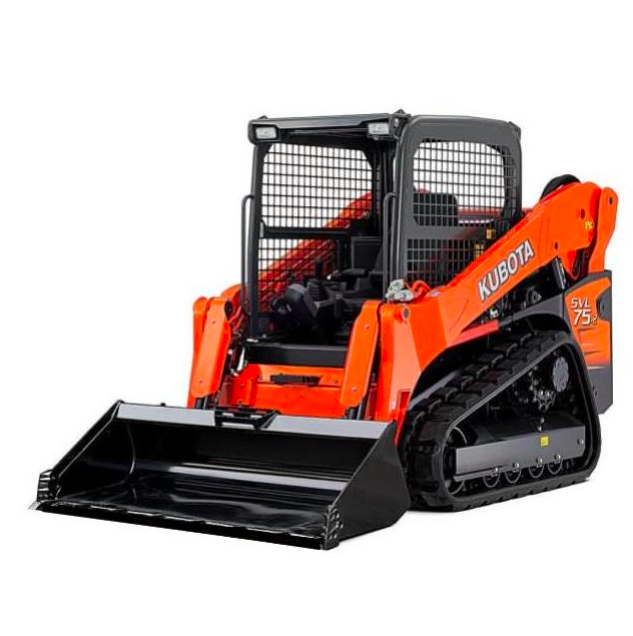

Kubota SVL75‑2 Brand New & Used Skid Steer

Product Description

Kubota SVL75-2 — Product Specification

Engine

• Model: Kubota V3307-CR-TE4

• Type: 4-cylinder, turbocharged diesel

• Displacement: 3.3 L

• Gross Horsepower: 74.3 HP @ 2,600 rpm

• Net Horsepower: approx. 68.8 HP

• Fuel Type: Diesel

• Emissions: Meets Tier 4 Final standards

Performance

• Rated Operating Capacity (35%): approx. 1,815 lbs (823 kg)

• Rated Operating Capacity (50%): approx. 2,450 lbs (1,110 kg)

• Tipping Load: approx. 4,900 lbs (2,223 kg)

• Breakout Force:

  • Bucket: approx. 6,200 lbs (2,812 kg)

  • Lift Arm: approx. 4,000 lbs (1,814 kg)

• Travel Speed:

  • Low: 4.9 mph (7.8 km/h)

  • High: 7.1 mph (11.4 km/h)

Hydraulic System

• Hydraulic Pump Capacity: 15.1 gpm (57.1 L/min)

• High-Flow Option: 26.9 gpm (101.8 L/min)

• Hydraulic Pressure: approx. 3,400 psi

• Auxiliary Hydraulic Flow: Standard & High-Flow available

Dimensions

• Operating Weight: approx. 9,315 lbs (4,225 kg)

• Overall Length (with bucket): 146 in (3,708 mm)

• Overall Width (with standard bucket): 68.1 in (1,730 mm)

• Track Width: 12.6 in (320 mm)

• Overall Height: 83 in (2,108 mm)

• Ground Clearance: 11.7 in (297 mm)

Operating Range

• Maximum Lift Height to Bucket Pin: approx. 118.5 in (3,010 mm)

• Dump Clearance at Full Height: approx. 94.7 in (2,405 mm)

• Maximum Dump Angle: 38°

• Bucket Rollback Angle: 30°

Tracks & Undercarriage

• Track Type: Kubota durable rubber tracks

• Track Length on Ground: approx. 54.3 in (1,379 mm)

• Traction System: High-traction, low-ground-pressure design

• Ground Pressure: approx. 4.7 psi

Cab & Operator Comfort

• ROPS / FOPS Certified

• Pressurized and sealed integrated cab (optional)

• Adjustable suspension seat

• Full multifunction joystick controls

• Large cab entry with wide door

• Enhanced visibility and ergonomic layout

Fuel & Capacities

• Fuel Tank Capacity: approx. 24.7 gal (93.5 L)

• Hydraulic Tank Capacity: approx. 9.2 gal (34.8 L)

Additional Features

• Electronic travel torque management

• Self-leveling loader function (optional)

• LED work light package (optional)

• High-performance cooling system for heavy-duty use

• Standard two-speed travel on most configurations

• Strong vertical-lift design for improved loading and dumping
