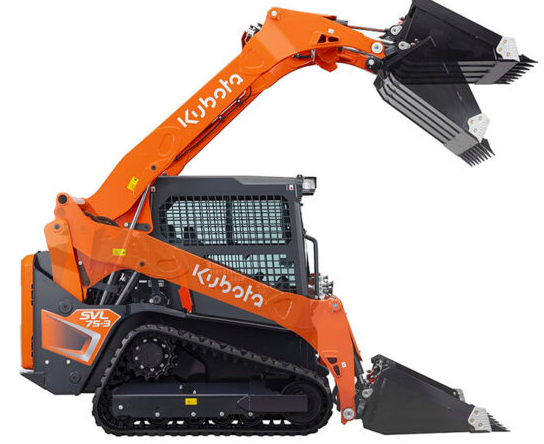

Kubota SVL75‑3 Brand New & Used Skid Steer

Product Description

Kubota SVL75-3 — Product Specification

Engine & Powertrain

• Engine type: Turbocharged diesel, 4-cylinder

• Displacement: approx. 3.33 L

• Gross power: 74.3 HP (≈ 55.4 kW)

• Net power: approx. 73.2 HP (≈ 54.6 kW)

• Hydraulic transmission: Hydrostatic two-speed travel with automatic shift (auto downshift) for optimized torque and smooth maneuvering

Operating Capacity & Performance

• Rated Operating Capacity (ROC): 1,129 kg (at 35% tipping load)

• Rated Operating Capacity (50% tipping load basis): approx. 1,613 kg

• Tipping Load: approx. 3,226 kg

• Bucket Breakout Force: 2,808 kgf

• Lift-Arm Breakout Force: 2,142 kgf

• Maximum Traction Force: approx. 4,390 kgf

• Ground Pressure (wide-track configuration): ~4.7–4.8 psi (≈ 0.33–0.34 kg/cm²) — low ground pressure for reduced soil impact

• Travel Speed: Low ~9 km/h, High ~13.7 km/h

Dimensions & Weight

• Operating weight (Closed-Cab): approx. 4,273 kg

• Overall length (with bucket on ground): approx. 3,609 mm

• Overall width (standard track): approx. 1,675 mm; (wide track): approx. 1,755 mm

• Overall height (top of cab): approx. 2,078 mm

• Ground clearance: approx. 296 mm

• Track on-ground contact length: 1,436 mm

• Track width: 320 mm (standard) / 400 mm (wide)

• Track rollers (per side): 4

Hydraulics & Auxiliary

• Standard auxiliary hydraulic flow: approx. 72.7 L/min

• High-flow auxiliary option: approx. 112.8 L/min — suitable for demanding attachments

• Auxiliary hydraulic pressure: ~224 bar

• Lift-arm path: vertical — ensures strong lift and consistent dumping angle

Cab & Operator Comfort / Safety

• Operator station: choice of open-cab or fully enclosed, sealed & pressurised cab

• Cab width (side-screen to side-screen): 36 inches — generous space for operator comfort and visibility

• Controls: multi-function hydraulic pilot / joystick controls (depending on configuration) for precise handling

• Standard rear-view camera + 7″ colour LCD display — improves visibility and operational awareness

• Robust build: designed for dusty, wet, or harsh working environments; easy access for maintenance

Use Cases & Versatility

The SVL75-3 is engineered for multiple tasks including material handling, digging, grading, landscaping, hardscaping, and working with various hydraulic attachments. Its combination of power, hydraulic flow, compact dimensions, and low ground pressure make it suitable for construction, agriculture, landscaping, and general earthmoving — even in confined or sensitive areas.
