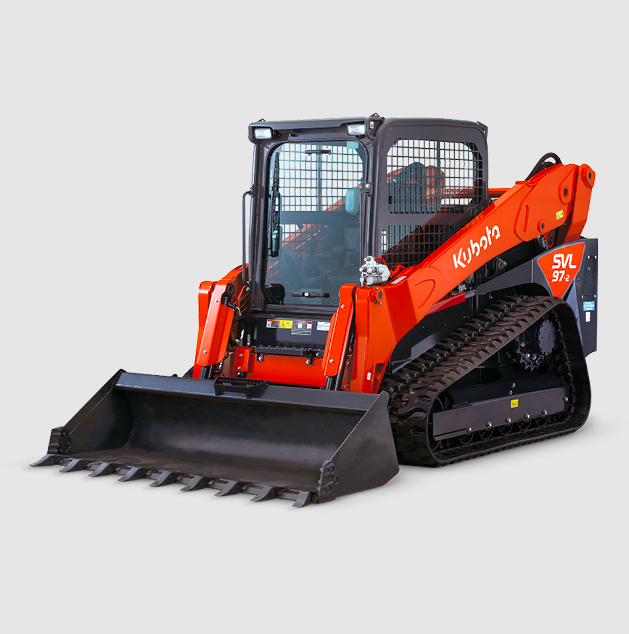

Kubota SVL97‑2 Brand New & Used Skid Steer

Product Description

Kubota SVL97-2 — Product Specification

Engine & Powertrain

• Engine Type: 4-cylinder, turbocharged diesel (Model: V3800-TIEF4)

• Gross Power: 96.4 HP (≈ 71.9 kW)

• Displacement: 3,769 cc

• Travel Speed:

  • Low: ≈ 8.0 km/h (5.0 mph)

  • High: ≈ 11.7 km/h (7.3 mph)

Loader Performance

• Rated Operating Capacity (35%): ≈ 1,451 kg (3,200 lbs)

• Tipping Load: ≈ 4,147 kg (9,143 lbs)

• Bucket Breakout Force: ≈ 3,458 kgf (7,623 lbs)

• Lift-Arm Breakout Force: ≈ 2,509 kgf (5,530 lbs)

• Lift-Arm Design: Vertical lift for increased height and reach

Hydraulic System

• Standard Auxiliary Flow: 87.6 L/min (23.1 GPM)

• High-Flow Option: Up to 152 L/min (40 GPM)

• Hydraulic Pressure: ≈ 249.8 bar (≈ 3,553 psi)

Undercarriage & Tracks

• Operating Weight: ≈ 5,125–5,240 kg (11,299–11,552 lbs)

• Track Width (Standard): 450 mm (17.7 in)

• Ground Contact Length: 1,667 mm

• Ground Clearance: ≈ 293 mm (11.5 in)

• Ground Pressure: ≈ 31.0 kPa (4.5 psi)

Dimensions

• Overall Length (with bucket): 3,929 mm

• Vehicle Width: 1,962 mm

• Bucket Width: 2,032 mm

• Overall Height (top of cab): 2,116 mm

• Maximum Hinge Pin Height: 3,264 mm (≈ 128.5 in)

• Maximum Dump Reach at Full Lift: ≈ 1,035 mm (≈ 40.7 in)

Operational & Safety Features

• ROPS/FOPS-certified enclosed cab or open-station options

• Self-leveling loader arms during lift

• High-visibility operator station with ergonomic controls

• Durable, integrated mainframe and undercarriage

• Triple-flange sealed track rollers for improved stability

• Enhanced cooling system for heavy-duty operations

Application Suitability

The Kubota SVL97-2 is designed for high-performance loading, earthmoving, and construction operations. With strong hydraulic power, high breakout forces, and a stable vertical-lift system, it is ideal for demanding work environments, commercial contractors, and fleet operators requiring reliability and productivity.
