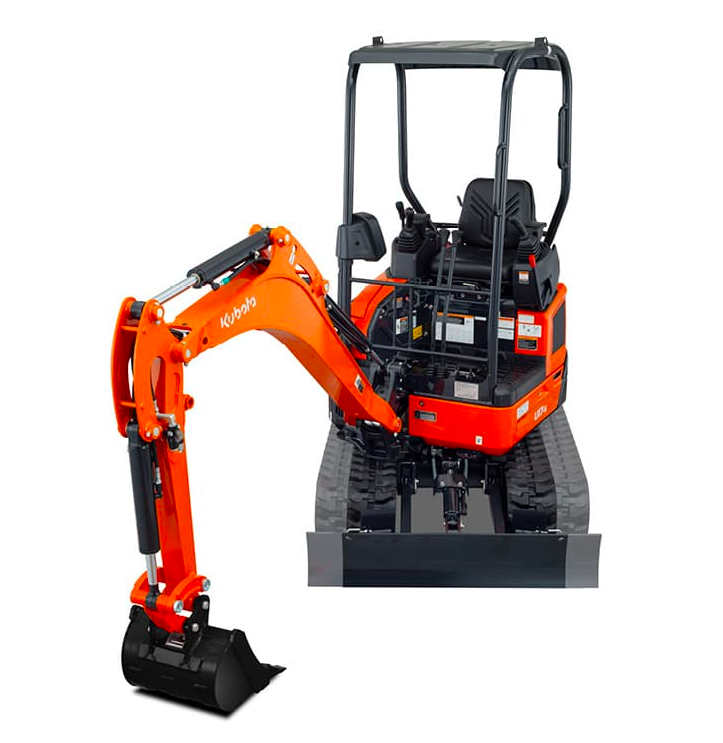

Kubota U17-5 – Brand New & Used Mini Excavator

Product Description

Kubota U17-5 — Product Specification

Engine

• Model: Kubota D902-E4

• Type: 3-cylinder, liquid-cooled diesel

• Emission Compliance: Tier 4 Final / Stage V

• Displacement: 898 cc

• Rated Speed: 2,300 rpm

• Gross Power: approx. 16.1 HP (12.0 kW)

• Fuel Type: Diesel

Performance

• Operating Weight (Canopy): approx. 1,650–1,725 kg (varies by configuration)

• Travel Speed:

  • Low: 2.1 km/h

  • High: 4.0 km/h

• Traction Force: approx. 1,550 kgf

• Swing Speed: 9.1 rpm

• Maximum Digging Depth: approx. 2.31 m

• Maximum Vertical Digging Depth: approx. 1.85 m

• Maximum Digging Reach: approx. 3.81 m

• Maximum Dumping Height: approx. 2.54 m

Hydraulic System

• Pump Type: Variable displacement + gear pumps

• Auxiliary Hydraulic Flow: approx. 30 L/min

• Hydraulic Pressure: approx. 205 bar

• Bucket Digging Force: approx. 1,550–1,600 kgf

• Arm Digging Force: approx. 740–800 kgf

Dimensions

• Overall Length: approx. 3,540 mm

• Overall Width:

  • Retracted Track: 990 mm

  • Expanded Track: 1,240 mm

• Overall Height: approx. 2,340 mm

• Minimum Tail Swing Radius: Zero-tail swing design

• Ground Clearance: approx. 150 mm

• Tumbler Distance: approx. 1,234 mm

Working Ranges

• Boom Swing Angle:

  • Left: 65°

  • Right: 58°

• Blade Height (Lift Above Ground): approx. 230 mm

• Blade Drop (Below Ground): approx. 270 mm

Capacities

• Fuel Tank: approx. 16 L

• Hydraulic Reservoir: approx. 16–20 L

• Cooling System: approx. 3.5 L

Undercarriage

• Track Type: Rubber (standard)

• Track Width: 230 mm

• Track Tension: Grease-adjusted

• Expandable Undercarriage: 990–1,240 mm for stability in digging

Operator Environment

• ROPS/FOPS Certified Canopy

• Intuitive Pilot Controls

• Wide operator’s station with improved legroom

• Easy-to-read digital display

• Protected hydraulic hose routing on boom

• Flat floor for easier cleaning

Features & Options

• Zero-tail-swing design for tight job sites

• Fold-down pedal for straight travel

• Two-speed travel with automatic downshift

• Auxiliary hydraulic circuit for attachments

• Optional quick coupler

• Optional long-arm configuration

• Improved service access to engine, battery, and filters
