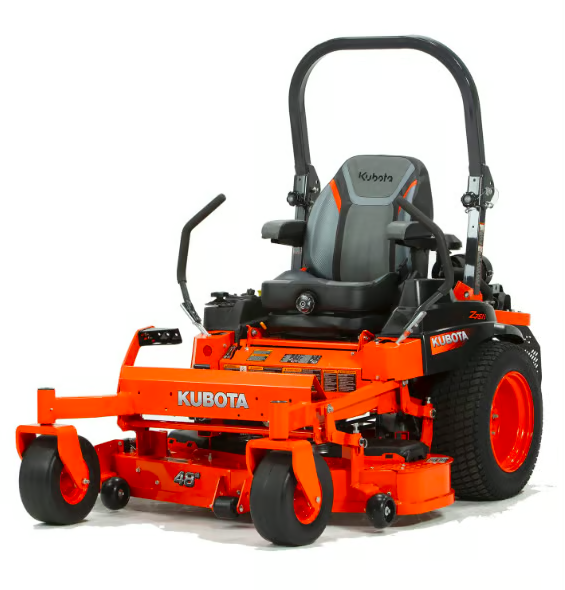

Kubota Z242KW-48 Brand New & Used Lawn Mower

Product Description

Kubota Z242KW-48 — Product Specification

Engine

• Engine Model: Kawasaki FR651V (air-cooled, 2-cylinder V-twin)

• Gross Power: 21.5 hp

• Displacement: approx. 726 cc (44.3 cu in)

• Fuel Type: Gasoline

• Starting System: Electric push-button

Transmission & Drive

• Transmission Type: Hydrostatic (Hydro-Gear ZT-3100)

• Control: Dual hand levers for precise steering

• Drive Method: Integral, belt-driven

Mower Deck

• Deck Size: 48 in (1219 mm)

• Blade Count: 3

• Deck Material / Thickness: 10-gauge steel (approx. 3.4 mm)

• Cutting Height Range: 1.5 in – 4.5 in (38 mm – 114 mm) in ¼-inch increments

• Deck Lift: Mechanical foot-pedal “K-Lift” ratchet system

• Deck Mount: Parallel-linkage

• Drive: Belt drive

• Blade Tip Speed: approx. 18,100 ft/min (approx. 92 m/s)

• Anti-scalp Rollers: Rigid

Performance & Speed

• Maximum Forward Travel Speed: ~8 mph (≈12.9 km/h)

• Reverse Travel Speed: ~4 mph (≈6.4 km/h)

Chassis, Dimensions & Weight

• Overall Length: ~79.0 in (2006 mm)

• Overall Width (with mower deck): ~61.1 in (1552 mm)

• Overall Width (without mower): ~47.5 in (1207 mm)

• Height with ROPS (upright): ~68.4 in (1738 mm)

• Wheelbase: ~47.0 in (1195 mm)

• Weight (with mower and fuel): ~844 lb (383 kg)

Wheels & Tires

• Front Tires: 13 × 6.5 – 6

• Rear Tires: 22 × 10 – 14

Capacities

• Fuel Tank Capacity: ~4.3 US gallons (approx. 16.3 L)

Operator Comfort & Safety

• Seat: 21″ high-back suspension seat (K-RIDE comfort system)

• Floor / Footpan: Cushioned with thick rubber to reduce vibration

• Operator Controls: Ergonomic HST levers, easy-reach height adjustment, dual lever steering

• ROPS: Foldable Roll-Over Protection Structure (for maneuvering under low obstacles)

• Storage: Built-in covered compartments for tools or belongings

• Additional Features: Cup holders, safety start switch, operator-presence control

Additional Features

• Push-button engine start for convenient one-handed operation

• Height dial with fine ¼-inch increment adjustments

• Foldable ROPS allows for easier storage

• Easy service access and design for maintenance
