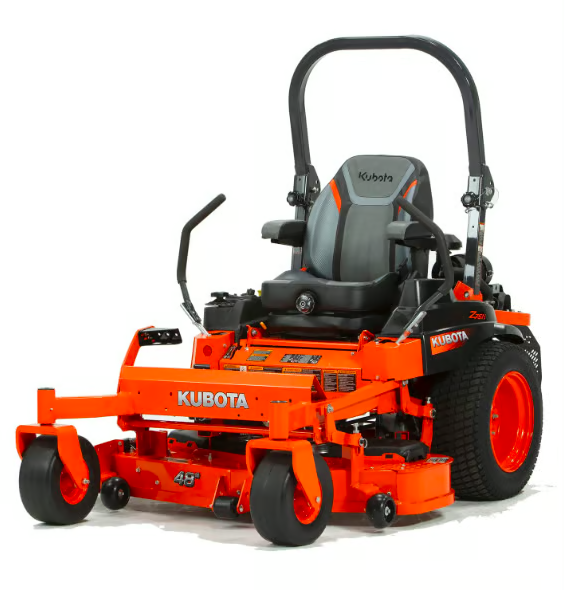

Kubota Z252KW-54 Brand New & Used Lawn Mower

Product Description

Kubota Z252KW-54 — Product Specification

Model Name: Z252KW-54
Category: Residential / Light Commercial Zero-Turn Mower

Engine

• Type: Air-cooled, 2-cylinder gasoline engine

• Model: Kawasaki FR730V

• Displacement: 726 cc

• Rated Power: 24 HP

Drivetrain & Transmission

• Transmission Type: Hydrostatic transmission, dual hand-lever control (2-HST)

• Transmission Model: Hydro-Gear ZT-3100

• Brake: Cog-style parking lock brake with hand lever

Mower Deck

• Deck Material: 10-gauge welded steel

• Deck Width: 54 in (1372 mm)

• Deck Depth: 5 in (127 mm)

• Number of Blades: 3

• Blade Tip Speed: ~92 m/s

• Cutting Height Range: 38 mm – 114 mm (1.5 in – 4.5 in), adjustable in ¼-inch increments

• Lift Mechanism: Mechanical foot pedal (K-Lift) with ratchet system

Performance

• Maximum Forward Speed: ~12.9 km/h (8 mph)

• Reverse Speed: ~6.4 km/h (4 mph)

Dimensions & Weight

• Overall Length: 2,006 mm (79.0 in)

• Overall Width (with mower): 1,710 mm (67.3 in)

• Overall Width (without mower): 1,207 mm (47.5 in)

• Height (with ROPS): ~1,738 mm (68.4 in)

• Wheelbase: 1,195 mm (47.0 in)

• Ground Clearance (minimum): ~110 mm

• Weight (with mower and fuel): ~390 kg (860 lb)

Tires / Wheels

• Front Tires: 13 × 6.5 – 6 pneumatic

• Rear Tires: 22 × 10 – 14 turf

Fuel / Capacities

• Fuel Tank Capacity: 16.3 L (4.3 gal)

• Battery: 12V (U1), with 300 CCA rating

• Fuel Gauge: Sight-window style

Operator Comfort & Safety

• Seat: 21″ high-back suspension seat with armrests

• Comfort System: Kubota “K-RIDE” with cushioning under step pan, wide foot-pan, and dual control levers

• Starting Method: Push-button start

• ROPS: Roll-over protection structure (fixed or foldable)

• Additional Features: Cup holders, covered storage compartment

Safety & Operational Features

• Operator Presence Control (OPC)

• Engine Shut-Off Switch

• PTO Clutch: Electric

• PTO Brake: Dry-disc

Other Features

• Engine-hour meter with maintenance indicator

• Step removal mechanism (tool-less) for easy maintenance

• Ergonomic control layout for easy access to control levers and deck height

• Durable design suitable for frequent residential mowing
